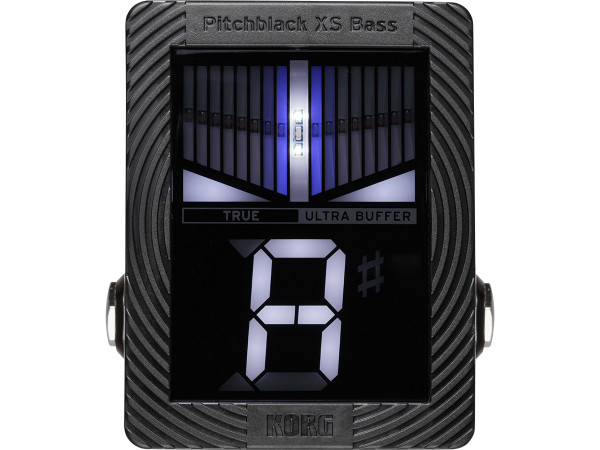

Korg Pitchblack XS Bass PB-XS Bass Pedal Tuner

The Pitchblack XS Bass is a chromatic pedal tuner designed specifically for bass guitars. It features a bass-specific tuner circuit for precise tuning even at low frequencies, with a measurement range starting from C0 (16.34Hz), covering over an octave below the bass guitar's low E string. This makes it suitable for all bassists including those downtuning or using 5 string basses.

The tuner combines the display and foot switch into a single unit, allowing for a large display in a compact size of 70 x 80 x 47 mm. It features ULTRA BUFFER technology optimized for bass, which can be switched to true bypass. The robust powder-coated enclosure allows the switch to respond to any position regardless of how it is stepped on or the direction it is placed.

Bass-dedicated pedal tuner with bass-specific tuner circuit and ULTRA BUFFER optimized for bass

Video

Features

• Equipped with a bass-specific tuner circuit for easy tuning even at low frequencies
• Measurement range starting from C0 (16.34Hz), covering over an octave below the bass guitar's low E string
• ULTRA BUFFER technology optimized for bass and switchable to true bypass
• Unique design with a large display in a compact size of 7 cm x 8 cm
• High visibility with meter LEDs that can be set to bright mode (two levels)
• Ultra-precise tuning down to +/-0.1 cents in strobe mode
• Four meter display modes: Regular, Strobe, Half Strobe, and Mirror

Specifications

• Scale: 12 note equal temperament
• Detection Range: E0 (20.60Hz)~C8(4,186Hz)
• Calibration Range: A4=436445Hz(1Hz steps)
• Detection Accuracy: +/- 0.1 cent (display mode: Strobe)
• Input Impedance: 1 M-ohm (tuner on)
• Display Modes: Regular, Strobe, Half-strobe, Mirror
• Connectors: INPUT (mono 1/4" jack), BYPASS (mono 1/4" jack), DC 9V IN
• Dimensions (W x D x H): 70 x 80 x 47 mm (including protrusions)
• Weight: 198 g

Power: AC adaptor (9V)
